Front arms assembly R4 - Lancer EVO VII-IX

Mitsubishi Lancer R4 EVO 7-9 Front Aluminium Wishbones set.

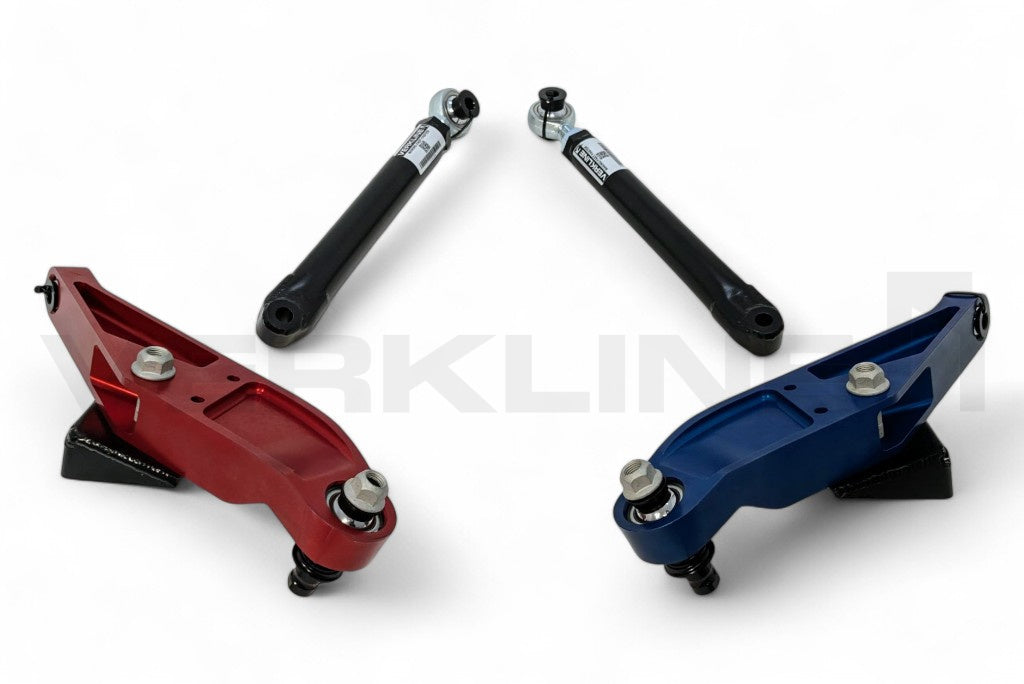

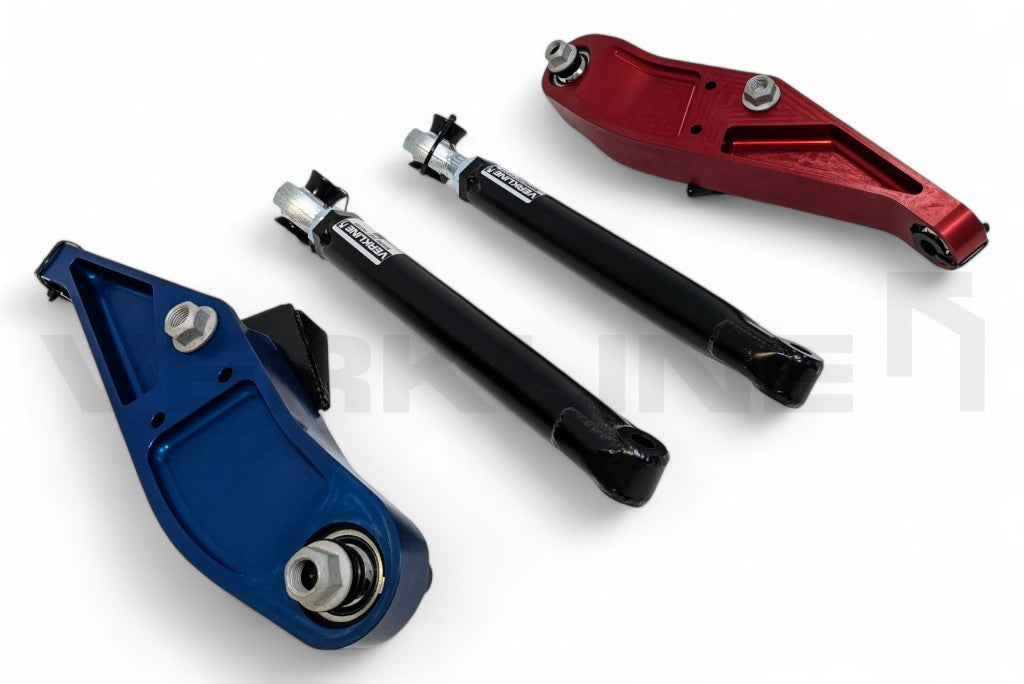

The kit consists of all the parts visible on the pictures:
- Front light weight aluminium wishbones (left and right)
- Two pins for uprighs
- Two M22 motorsport rod ends
- Four motorsport bearings
- Two arm antiroll brackets
- Spacer sleeves for assemble of the rod ends in the front subframe
- Six 10.9 bolts used
- Four 10.9 screws used

Features:
- R4 spec front suspension arm
- Comes preassembled ready for fitment in the car
- Allow increased caster and camber adjustment
- R4 rally kit compliant (meats FIA homologation rules for Lancer EVO IX)
- Same rod end suppler as for original R4 kit
- Greater strength over OEM wishbones
- Wishbones are anodized in red and blue colors

Technical details:
- Manufactured from 7075 aluminium on 5 axis CNC
- T45 tube used
- Pin made from 42CrMo4
- Tig Welded
- Full 3D CAD designed
- FEA Tested

Notice: Please note that this wishbone set WAS-910 is designed for use with the R4 type front subframe. If you wish to use it with our WAS-901 front subframe, kindly indicate this preference when placing your order.



parts used:

	Left-hand is red - CE113 104 - 1 pcs
			pcs
1	CE113-166	ARB mounting plate front arm rh	1
2	CE113-164	Front chamber arm	1
3	CE113-161	Front incidence strut	1
4	RG22SE42C0	Rodoball bearing	1
5	RG18MTE.35	Rodobal bearing	1
6	RM22XE.C0	Rodobal Rod-end M22x1,5	1
7	Seeger-SB35	Seeger SB35	1
8	Seeger-SB45	Seeger SB45	1
9	CE114-155	Front arm rear rod - M14	1
10	CE114-202	Nut M22x1.5	1
11	Washer-UNI-8840-DIN-137-B14	Washer UNI 8840 - DIN 137 - B14	1
12	Washer-UNI-8840-DIN-137-B10	Washer UNI 8840 - DIN 137 - B10	2
13	Hexagon-head-bolt-ISO-8676-M10x1.25x25	Hexagon head bolt ISO 8676 M10x1.25x25	2
14	Konelock-nut-M14x1.5	Konelock nut M14x1.5	2
15		Front arm LBJ pin adapter lower	1
16		Front arm LBJ pin adapter lower	1
17	CE114-152	Front Arm adapter	2
18		Front arm RH LBJ pin	1
19	NL14spss-254-Nord-Lock	NL14spss-254-Nord Lock	1
20	CE113-169	Front Arm RM22XE M14 adapter 15mm	1
21	CE113-170	Front arm RM22XE M14 adapter 5mm	1
	Right-hand is blue - CE113 107 - 1 pcs
			pcs
1	CE113-165	ARB mounting plate front arm lh	1
2	CE113-163	Front chamber arm	1
3	CE113-161	Front incidence strut	1
4	RG22SE42C0	Rodobal bearing	1
5	RG18MTE.35	Rodobal bearing	1
6	RM22XE.C0	Rodobal Rod-end M22x1,5	1
7	Seeger-SB35	Seeger SB35	1
8	Seeger-SB45	Seeger SB45	1
9	CE114-155	Front arm rear rod - M14	1
10	CE114-202	Nut M22x1.5	1
11	Washer-UNI-8840-DIN-137-B14	Washer UNI 8840 - DIN 137 - B14	1
12	Washer-UNI-8840-DIN-137-B10	Washer UNI 8840 - DIN 137 - B10	2
13	Hexagon-head-bolt-ISO-8676-M10x1.25x25	Hexagon head bolt ISO 8676 M10x1.25x25	2
14	Konelock-nut-M14x1.5	Konelock nut M14x1.5	2
15		Front arm LBJ pin adapter lower	1
16		Front arm LBJ pin adapter lower	1
17	CE114-152	Front Arm adapter	2
18		Front arm RH LBJ pin	1
19	NL14spss-254-Nord-Lock	NL14spss-254-Nord Lock	1
20	CE113-169	Front Arm RM22XE M14 adapter 15mm	1
21	CE113-170	Front arm RM22XE M14 adapter 5mm	1
