Mitsubishi Lancer EVO VII-IX Front Tubular Wishbones
Overview:
Enhance your vehicle's suspension performance with our premium Front Tubular Wishbones, specifically engineered for the Mitsubishi Lancer EVO VII-IX. This comprehensive kit includes all the components displayed in the images and offers superior rigidity and enhanced performance compared to OEM parts. Upgrade your suspension with our expertly engineered wishbones for a noticeable improvement in handling and performance.
Kit Components:
Key Features:
Technical Specifications:
Weight Comparison:
Finish Options:
Overview:
Enhance your vehicle's suspension performance with our premium Front Tubular Wishbones, specifically engineered for the Mitsubishi Lancer EVO VII-IX. This comprehensive kit includes all the components displayed in the images and offers superior rigidity and enhanced performance compared to OEM parts. Upgrade your suspension with our expertly engineered wishbones for a noticeable improvement in handling and performance.
Kit Components:

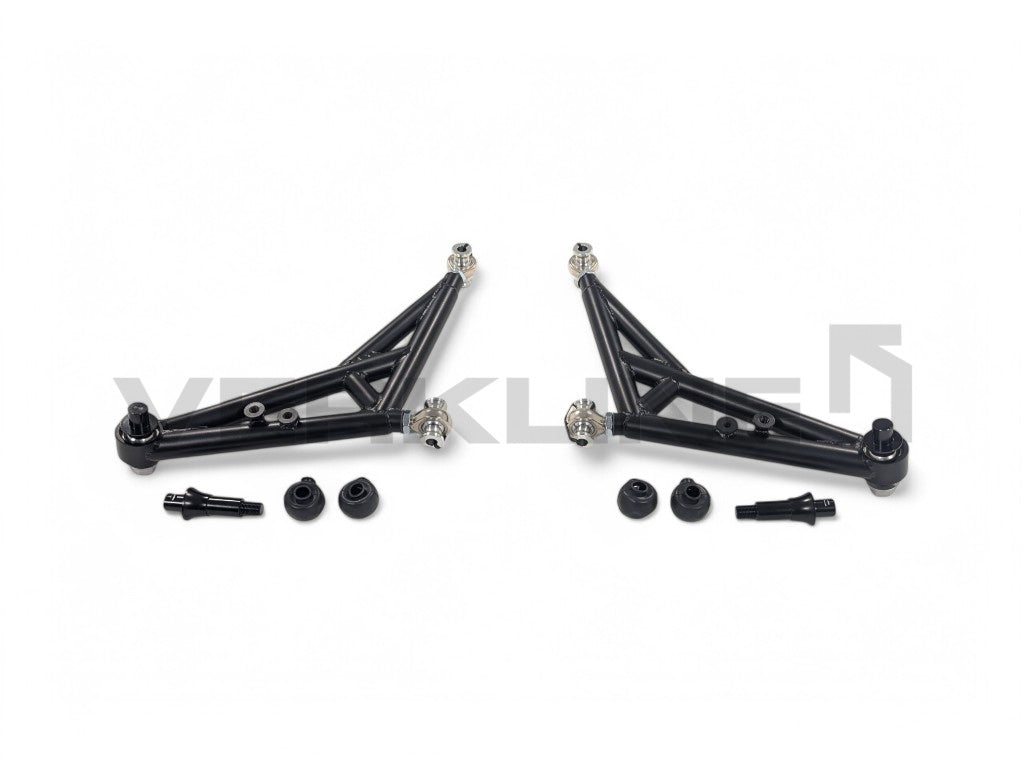

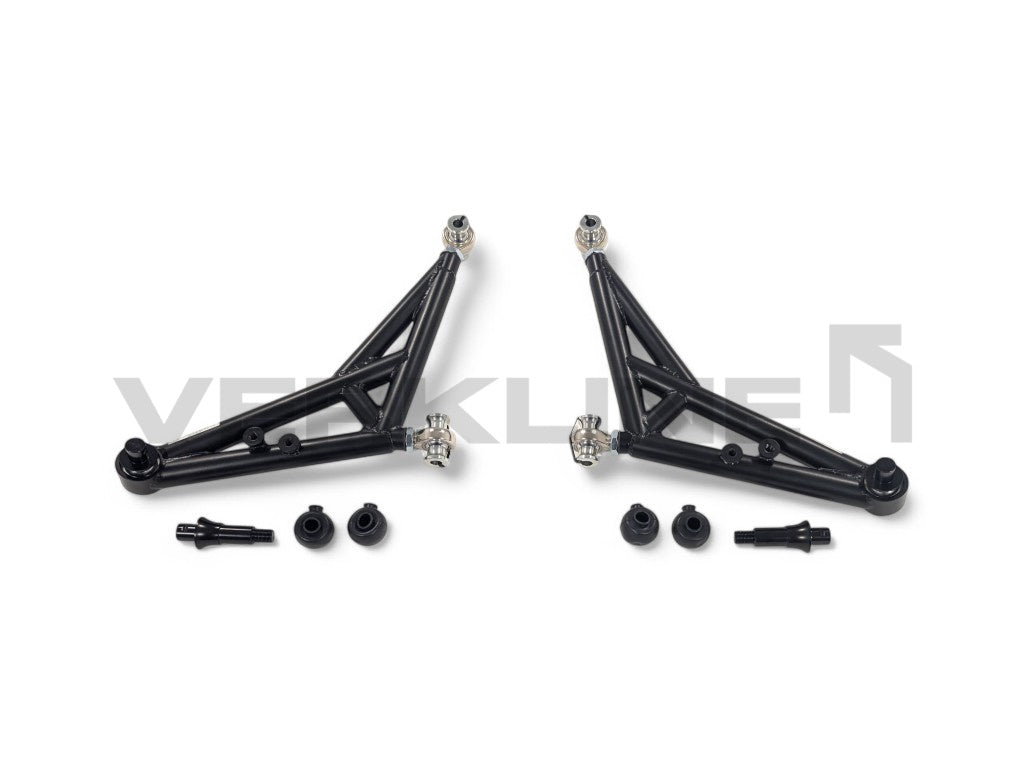

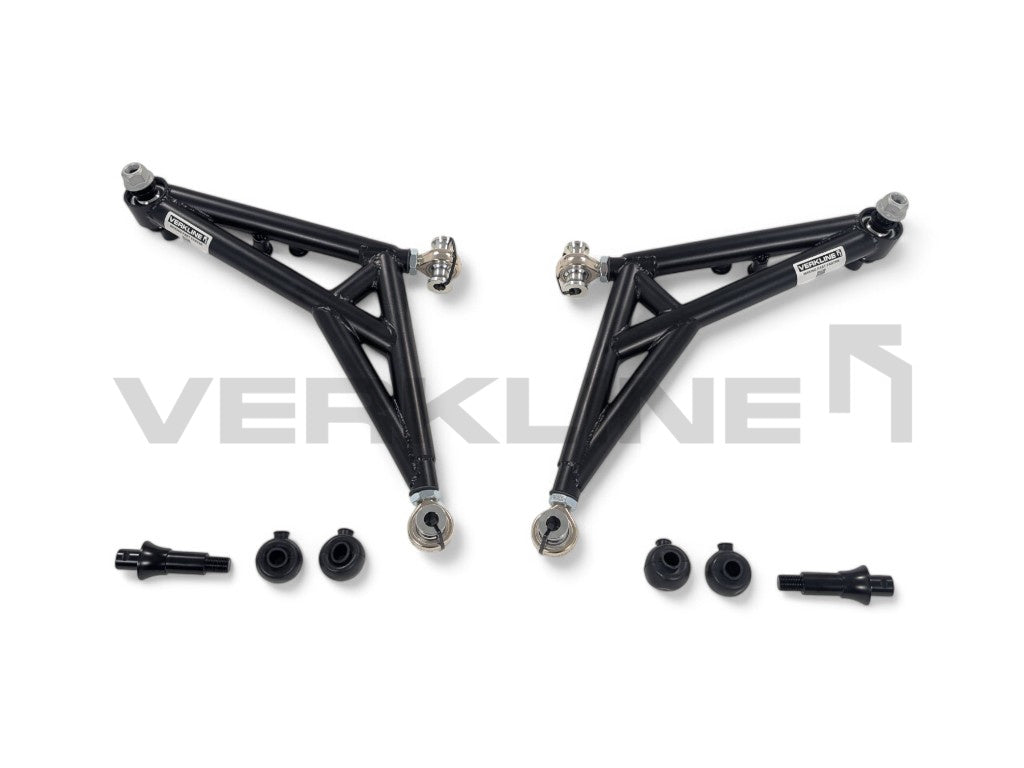

- Front Lightweight Tubular Wishbones: Available for both left and right sides.
- Extended Height Pins: Two pins for uprights, providing an additional 10 mm for improved suspension kinematics.
- Motorsport C0 Tight Fit Rod Ends: Four M18 rod ends manufactured in Europe for exceptional quality.
- Screw Locking Nuts: Four M18 half-size locking nuts for secure assembly.
- Spacer Sleeves: Four sleeves for integrating the rod ends with the front subframe.
- Teflon Lined Spherical Plain Bearings: Two M22 bearings designed to be vibration and resonance resistant.
Key Features:
- Preassembled: The kit comes fully assembled and is ready for installation.
- Enhanced Suspension Travel: The tilted pin design allows for increased suspension travel.
- Adjustability: Facilitates greater caster and camber adjustments.
- Compatibility: Can be used with the standard front subframe.
- Superior Strength: Delivers greater strength and rigidity compared to OEM wishbones.
Technical Specifications:
- Design: Fully developed using advanced 3D CAD software.
- Testing: FEA tested with additional reinforcement beyond the original design.
- Materials: Manufactured from T45 tubing and S355 steel for optimal durability.
- Welding: All components are TIG welded for precision and strength.
- Pins: Made from high-strength steel and finished with a KTL coating.
Weight Comparison:
- OEM Wishbones: Approximately 3.10 kg.
- Our Wishbones: Weigh 2.95 kg while offering enhanced rigidity.
Finish Options:
- Standard: Powder coated in black for a sleek, durable finish.
- Custom: Alternative color options are available for an additional €50 (RAL paint code required).
Weight
7.2 kg
SKU
WAS-903-904
EAN
5901138352083
CNC Precision
Milled from solid aluminum or steel
2 Years Warranty
Full manufacturer warranty
Shipping within 24 hours
From our warehouse if item is in stock
Made in Poland
Designed and manufactured in Poland (Europe)
