Rear camber arms R4 - Lancer EVO X

Mitsubishi Lancer EVO X Rear Camber Arms

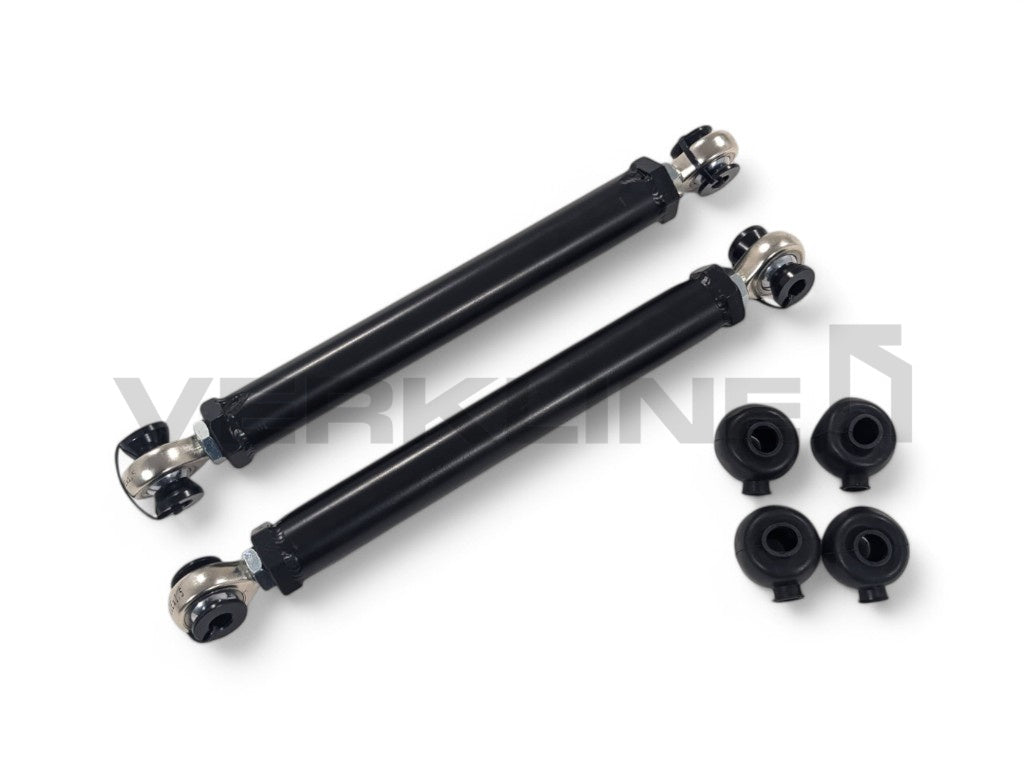

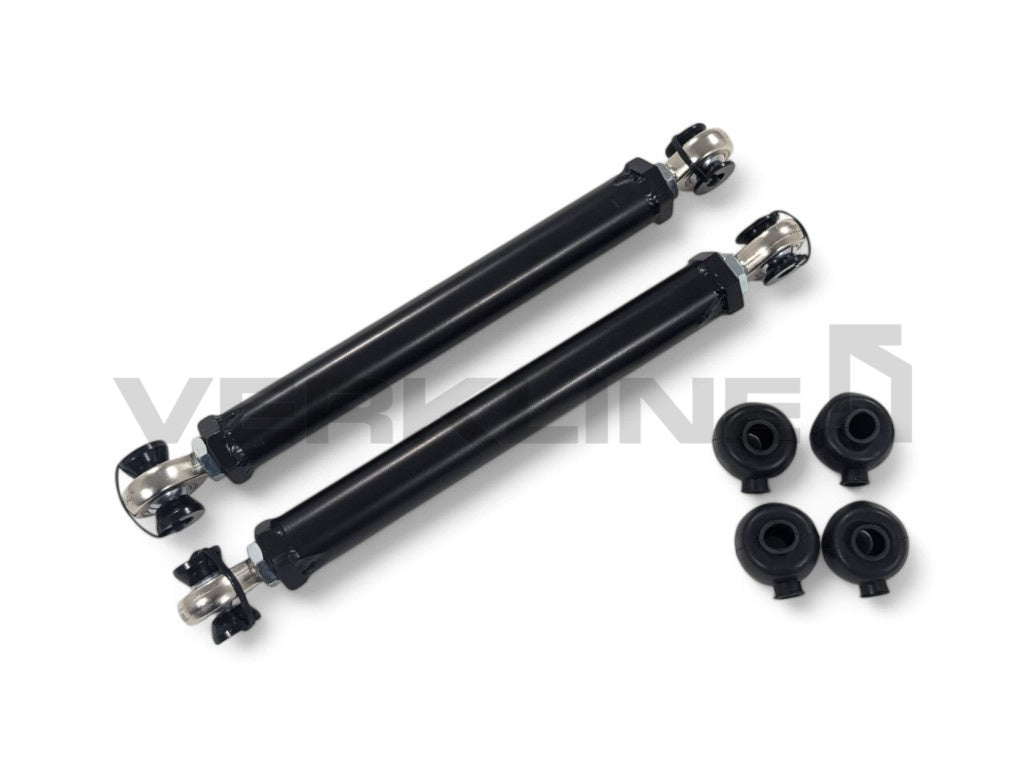

The kit consists of all the parts visible on the pictures:
- Rear light steel T45 35 mm rear toe link wishbones (left right)
- Two arm fixing C45 steel mounts
- Four M16 motorsport rod ends solid
- Four M16 half size screw locking nuts
- Four spacer sleeves for assemble of the arms in the rear subframe

Features:
- R4 spec rear suspension arm
- Comes preassembled ready for fitment in the car
- R4 rally kit compliant (meats FIA homologation rules for Lancer EVO X)
- Same rod end suppler as for original R4 kit
- Allows massive increase in toe adjustment
- Greater strength over OEM wishbones

Technical details
- Full 3D CAD designed
- FEA Tested and additional reinforcement to the original design was made
- Manufactured from T45 steel
- Powder painted black

Rear camber arms ( CE114-115 ) - 2 pcs
			pcs
1	CE114-177	Camber rod adapter on frame	2
2	CE114-178	Camber rod adapter on upright	2
3	RML16MTEx1,5	Rod-end M16x1,5 LH	1
4	RM16MTEx1,5	Rod-end M16x1,5 RH	1
5	CE114-181	Nut M16x1.5 LH	1
6	CE114-180	Nut M16x1.5 RH	1
7	CE114-162	Complete camber rod	1

Notice: Works only with R4 rear subframe WAS-816 or equivalent.
