Rear upper arms R4 - Lancer EVO X

Mitsubishi Lancer EVO X - Rear Upper Arms

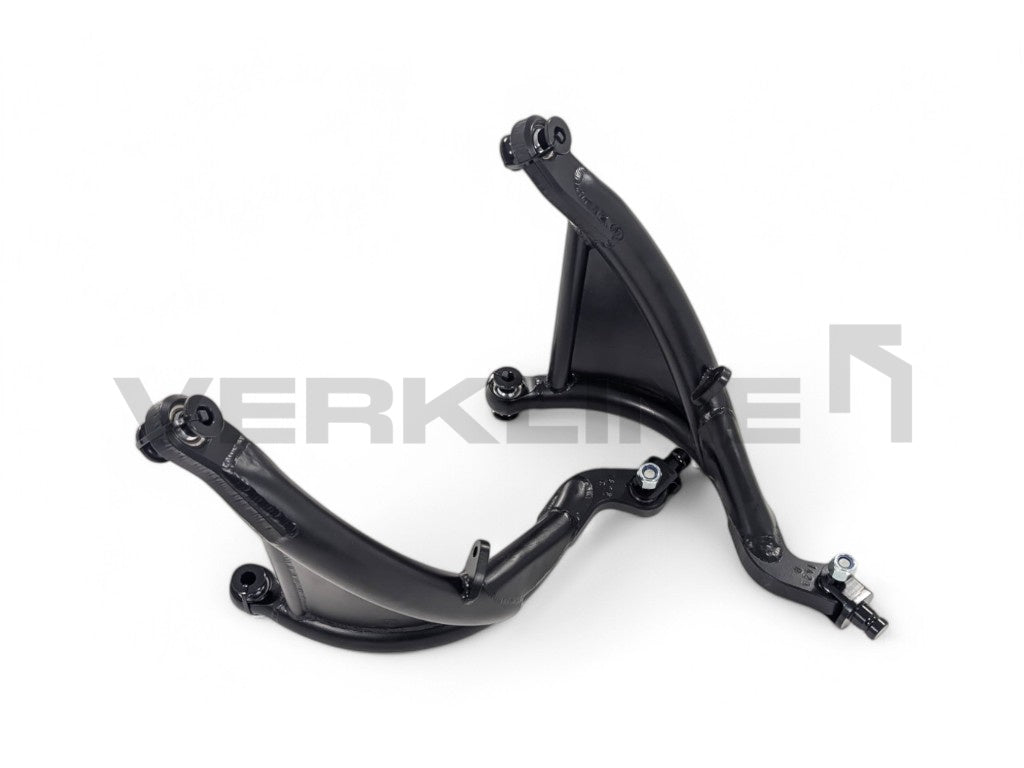

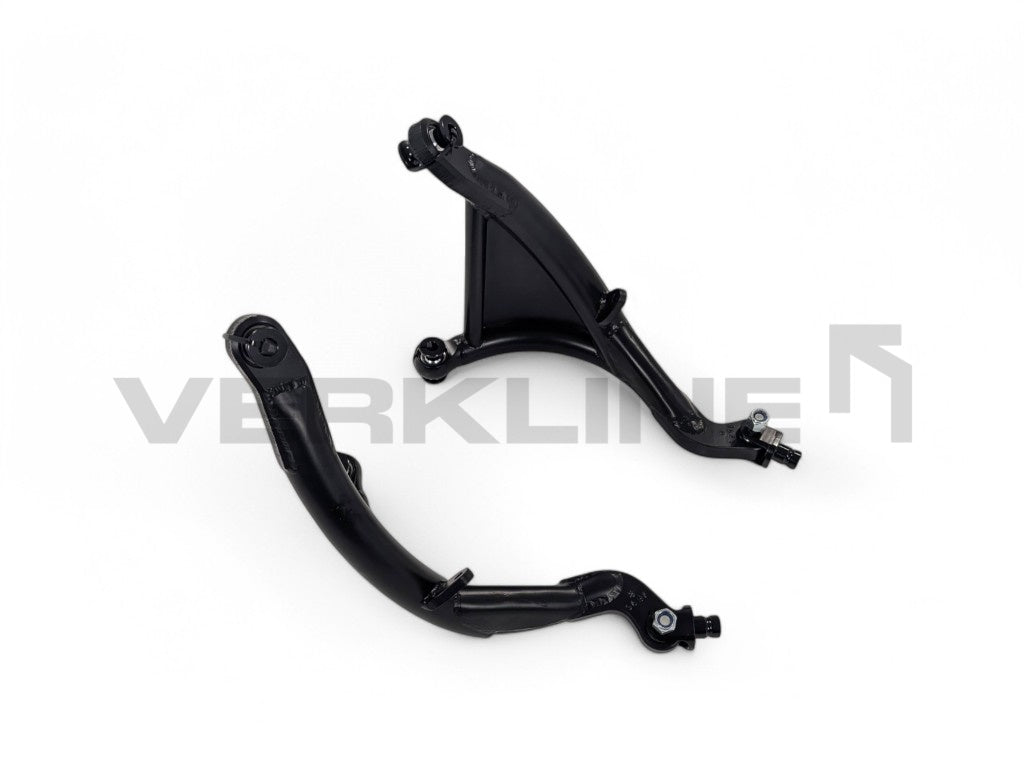

The kit consists of all the parts visible on the pictures:
- Two rear light steel T45 wishbones (left and right)
- Two arm fixing 42CrMo4+QT steel mounts
- Six motorsport bearings used
- Eight spacer sleeves for assemble of the arms in the rear subframe

Features:
- R4 spec rear suspension arm
- Comes preassembled ready for fitment in the car
- R4 rally kit compliant (meats FIA homogation rules for Lancer EVO X)
- Same bearings suppler as for original R4 kit
- Greater strength over OEM wishbones

Technical details
- Full 3D CAD designed
- FEA tested and additional reinforcement to the original design was made
- Manufactured from T45 steel tubing
- Powder painted black

Wishbones are powder painted in black as standard.

Rear Upper Arm RH Assembley ( CE114-230 ) - 1 pcs
			pcs
1	CE114-164	Rear fork	1
2	CE114-182	Longitudinal link adapter on frame	2
3	CE114-273	Rear upper arm adapter on frame	4
6	CE114-118	Upper rear A-arm RH	1
7	RG14MTE.MM29	Rodobal 29-14 bearing	3
8	Seeger-SB29	Seeger SB29	3

Rear Upper Arm LH Assembley ( CE114-231 ) - 1 pcs
			pcs
1	CE114-164	Rear fork	1
2	CE114-182	Longitudinal link adapter on frame	2
3	CE114-273	Rear upper arm adapter on frame	4
6	CE114-114	Upper rear A-arm LH	1
7	RG14MTE.MM29	Rodobal 29-14 bearing	3
8	Seeger-SB29	Seeger SB29	3

Notice: Works only with R4 rear subframe WAS-816 or equivalent.
