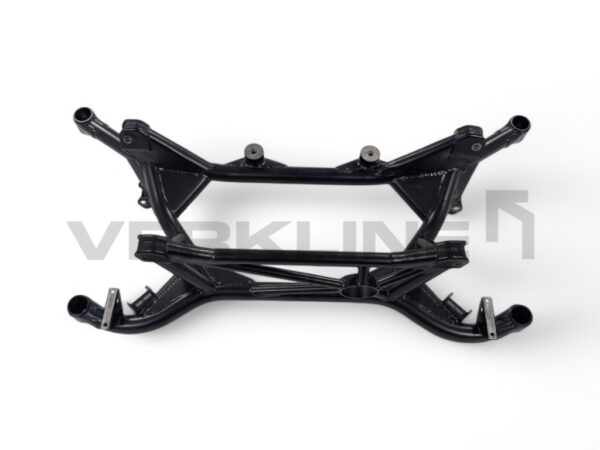

Lancer EVO X R4 rear subframe ( CE114-119 )
Features:
– developed based on 3D scan
– full CAD designed and FEA tested
– manufactured from T45 tubbing, milled parts from C45 metal and plates form 25CrMo4 steel
– tubing CNC bent and laser cut
– Tig Welded with special weld wire for T45 material
Notice: subframe works only with the rest of R4 rear wishbones package (WAS-810, WAS-809, WAS-807-808) and will not work with OEM wishbones. This crossmember needs mechanical RS rear differential (OEM Part Number: 3501A130).
