Mitsubishi Lancer EVO X Front Aluminium Wishbones set

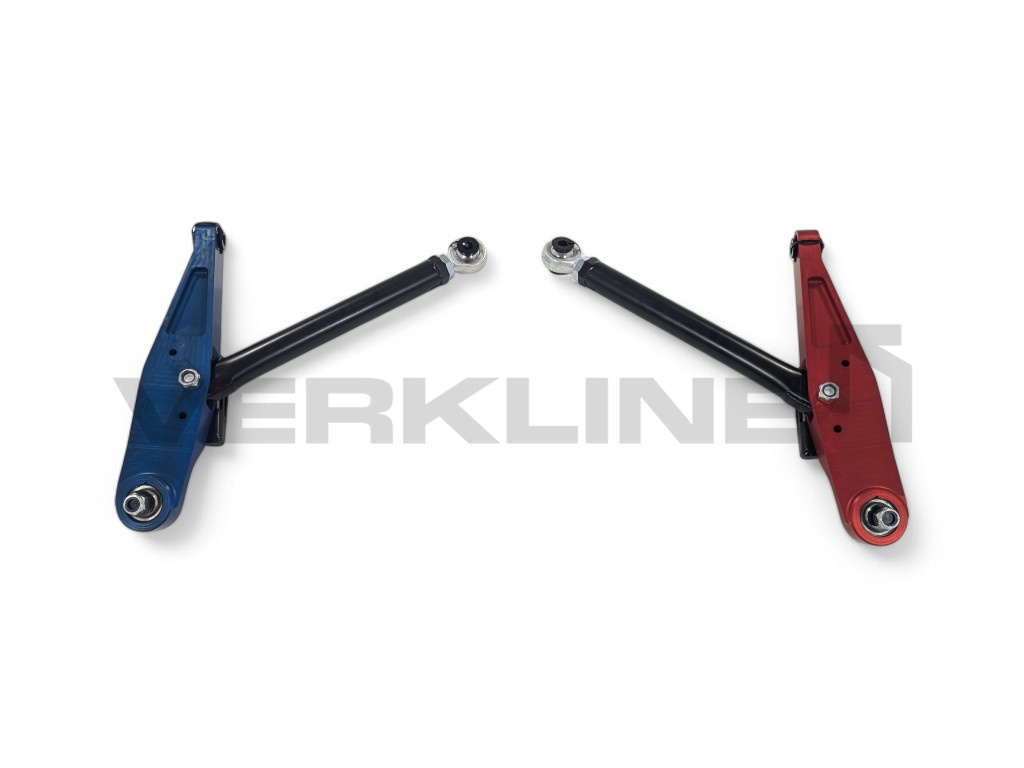

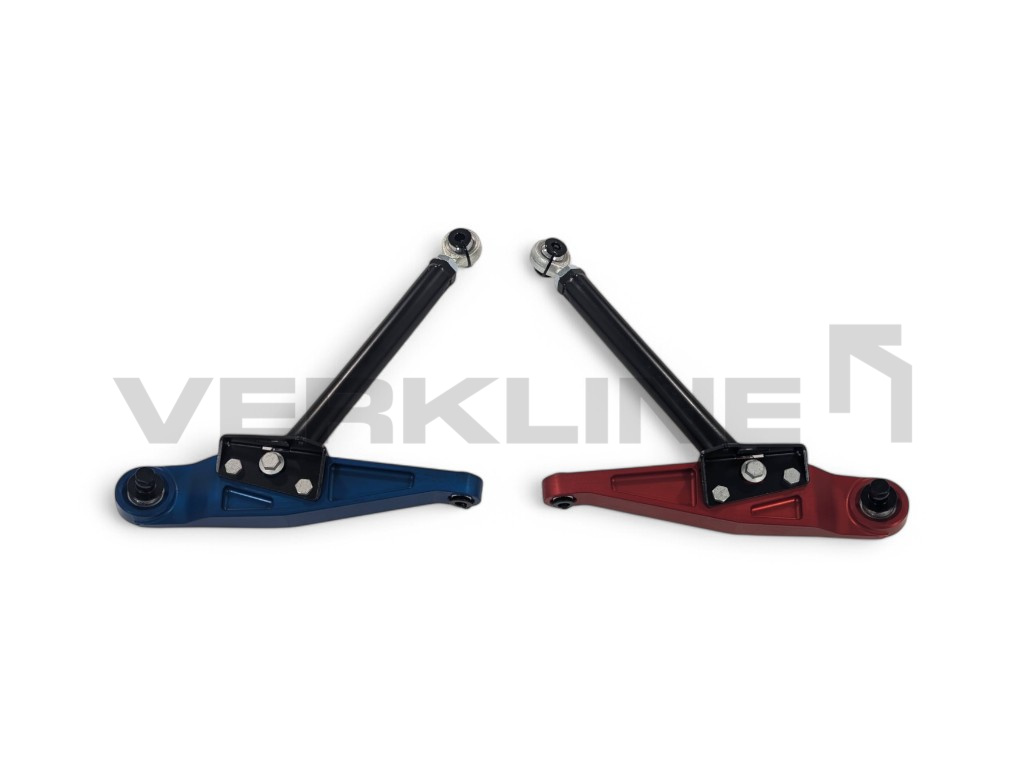

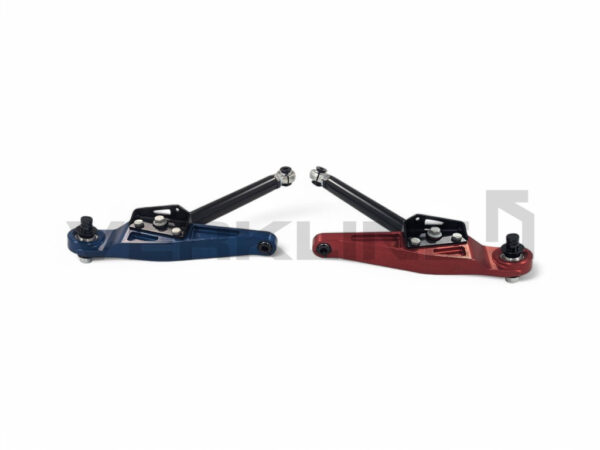

The kit consists of all the parts visible on the pictures:
– Front light weight aluminium wishbones (left and right)
– Two pins for uprighs
– Two M22 motorsport rod ends
– Four motorsport bearings
– Two arm antiroll brackets
– Spacer sleeves for assemble of the rod ends in the front subframe
– Six 10.9 bolts used
– Four 10.9 screws used
Features:
– R4 spec front suspension arm
– Comes preassembled ready for fitment in the car
– Allow increased caster and camber adjustment
– R4 rally kit compliant (meats FIA homologation rules for Lancer EVO X)
– Same rod end suppler as for original R4 kit
– Greater strength over OEM wishbones
– Wishbones are anodized in red and blue colors
Technical details
– Manufactured from 7075 aluminium on 5 axis CNC
– T45 tubing used
– Pins made from 42CrMo4
– Tig Welded
– Full 3D CAD designed
– FEA Tested and additional reinforcement to the original design was made
Notice: Works only with R4 front subframe WAS-821 or equivalent.
parts used:
Left-hand is red ( CE114-105 ) – 1 pcs | |||
pcs | |||
1 | CE114-165 | Front arm LH | 1 |
2 | CE114-27 | Front arm rear rod assy | 1 |
3 | Konelock-nut-M14x2 | Konelock nut M14x2 | 1 |
4 | CE114-173 | ARB mounting plate front arm | 1 |
5 | Front arm pin | 1 | |
6 | RG18MTE.35 | Rodobal bearing | 1 |
7 | CE114-152 | Front Arm adaptor bushing | 1 |
8 | Seeger-SB35 | Seeger SB35 | 1 |
9 | Seeger-SB42 | Seeger SB42 | 1 |
10 | Front arm higher pin adapter | 1 | |
11 | NL14spss-254-Nord-Lock | NL14spss-254-Nord Lock | 1 |
12 | RM22XE.C0 | Rodobal Rod-end M22x1,5 | 1 |
13 | CE114-202 | Nut M22x1.5 | 1 |
14 | Hexagon-head-bolt-ISO-8676-M10x1.25×25 | Hexagon head bolt ISO 8676 M10x1.25×25 | 2 |
15 | CE114-155 | Front arm rear rod ISO 8765 – M14 | 1 |
16 | CE114-72 | Front arm RM22XE adapter | 2 |
17 | RG22SE42C0 | Rodoball Uniball High Misalignament | 1 |
18 | Front arm lower pin adapter lower | 1 | |
19 | Washer-UNI-8840-DIN-137-B10 | Washer UNI 8840 – DIN 137 – B10 | 2 |
20 | Washer-UNI-8840-DIN-137-B14 | Washer UNI 8840 – DIN 137 – B14 | 1 |
Right-hand is blue ( CE114-108 ) – 1 pcs | |||
pcs | |||
1 | CE114-26 | Front arm RH | 1 |
2 | CE114-27 | Front arm rear rod assy | 1 |
3 | Konelock-nut-M14x2 | Konelock nut M14x2 | 1 |
4 | CE114-51 | ARB mounting plate front arm | 1 |
5 | CE114-65 | Front arm pin | 1 |
6 | RG18MTE.35 | Rodobal bearing | 1 |
7 | CE114-152 | Front Arm adaptor bushing | 1 |
8 | Seeger-SB35 | Seeger SB35 | 1 |
9 | Seeger-SB42 | Seeger SB42 | 1 |
10 | Front arm higher pin adapter | 1 | |
11 | NL14spss-254-Nord-Lock | NL14spss-254-Nord Lock | 1 |
12 | RM22XE.C0 | Rodobal Rod-end M22x1,5 | 1 |
13 | CE114-202 | Nut M22x1.5 | 2 |
14 | Hexagon-head-bolt-ISO-8676-M10x1.25×25 | Hexagon head bolt ISO 8676 M10x1.25×25 | 1 |
15 | CE114-155 | Front arm rear rod ISO 8765 – M14 | 2 |
16 | CE114-72 | Front arm RM22XE adapter | 1 |
17 | RG22SE42C0 | Rodoball Uniball High Misalignament | 1 |
18 | Front arm lower pin adapter lower | 1 | |
19 | Washer-UNI-8840-DIN-137-B10 | Washer UNI 8840 – DIN 137 – B10 | 1 |
20 | Washer-UNI-8840-DIN-137-B14 | Washer UNI 8840 – DIN 137 – B14 | 1 |
