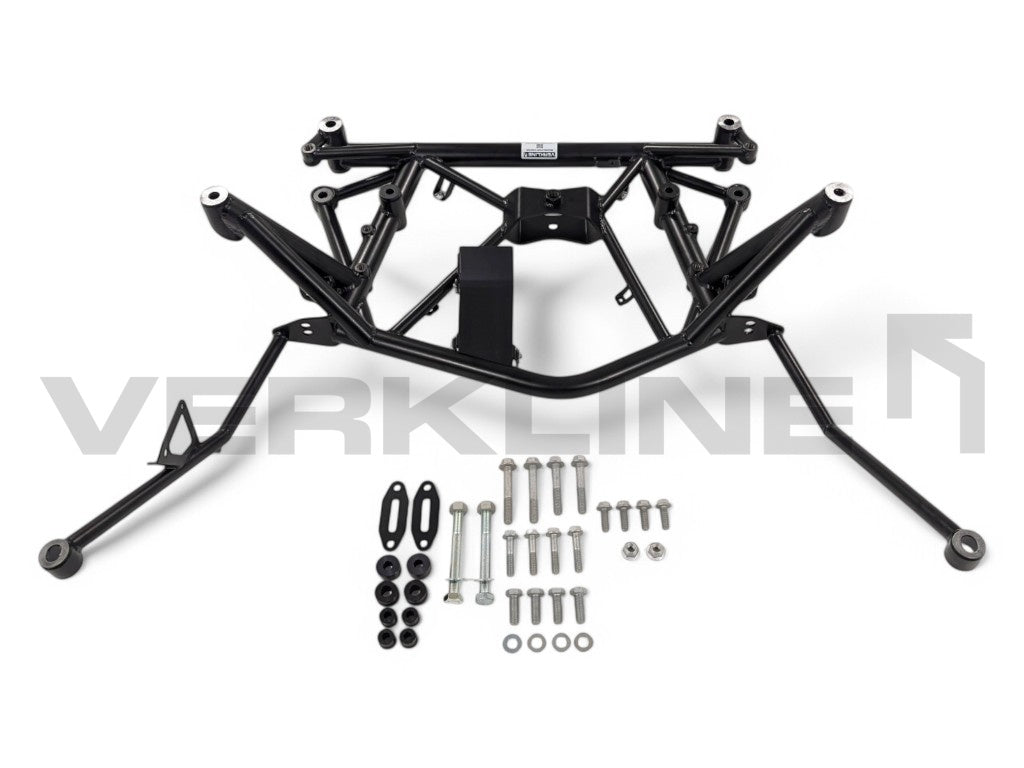

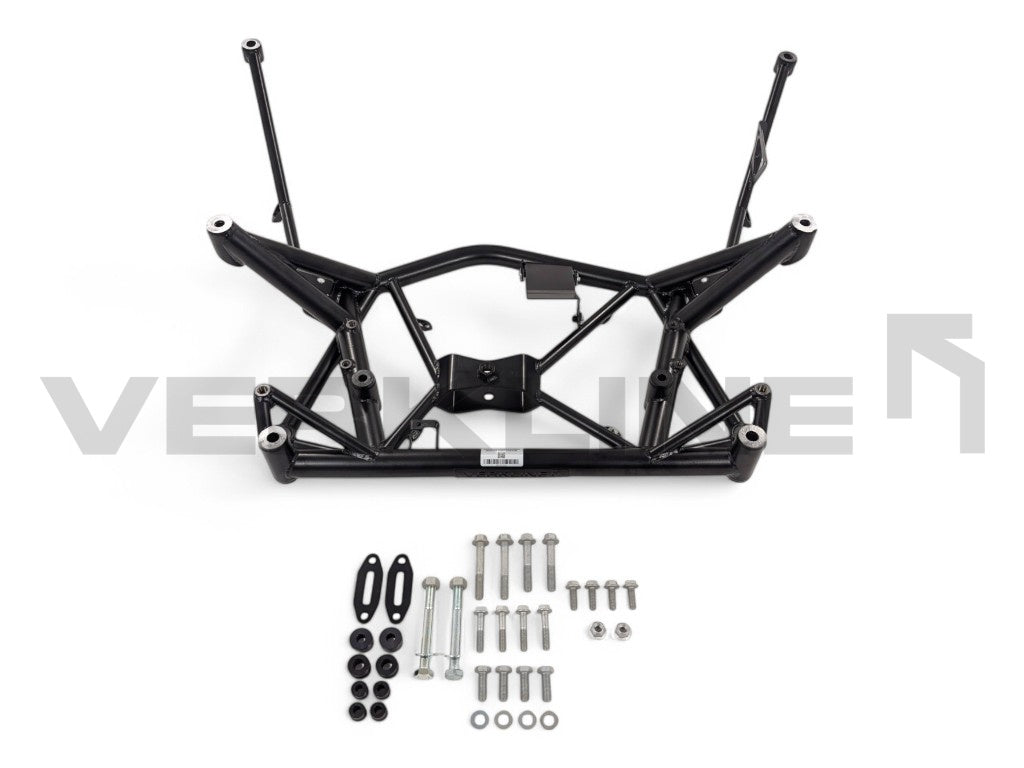

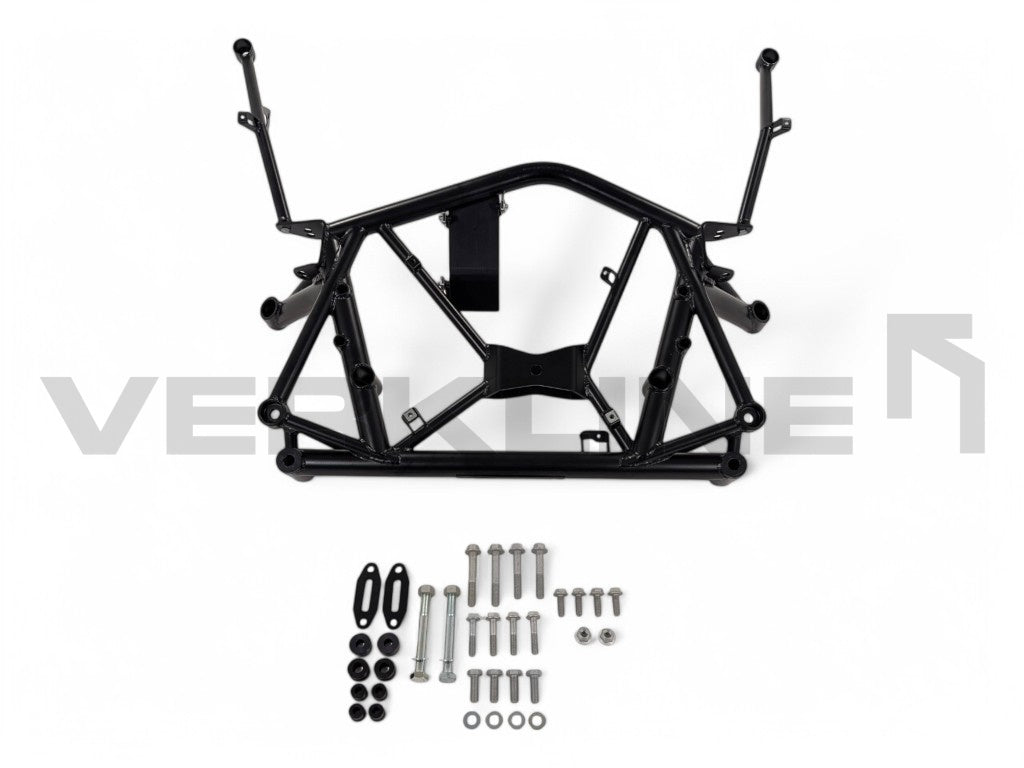

Front lightweight tubular subframe - Toyota GR Yaris

Here is our front lightweight tubular subframe for Toyota GR Yaris.

Product functionalities:

• Additional (revised) suspension mounting points (wishbones, steering rack, anti-roll bar) for improved suspension kinematics for lowered cars with racing purpose.


• One mounting subframe position eliminates subframe shifting under the car. No need for subframe locking kit / deadset collar kit (weight savings).


• Increases chassis rigidity for improved handling performance. No need for additional lower bar/member brace (weight savings).


• Better access to car underbody.

Features:

• Lighter than factory subframe by 7 kg. OEM is 17,75 kg. Our subframe is 10,75 kg.


• Made from T45 super strong piping.


• Compatible with both OEM and Verkline wishbones

What is included:

• Delivered painted (powder coated) black or on special order ( 50 euro) any RAL color


• Set of bushings for modifying kinematics (wishbones, steering rack, anti-roll bar)


• Set of mounting bolts.


• Custom air duct


• Printed install instructions (8 pages).

Used in:
- Toyota Yaris GR 2020

Notice: If you want to use modified suspension mounting points that are available on our subframe, you need to also use Verkline front lower wishbones – WAS-611 OEM wishbones won’t work there. For standard OEM pickup points on our subframe it is possible to use OEM wishbones.

Notice2: Installation of this rear insert kit will introduce some additional some NVH (noise, vibration, and harshness) transfer into the cabin.
