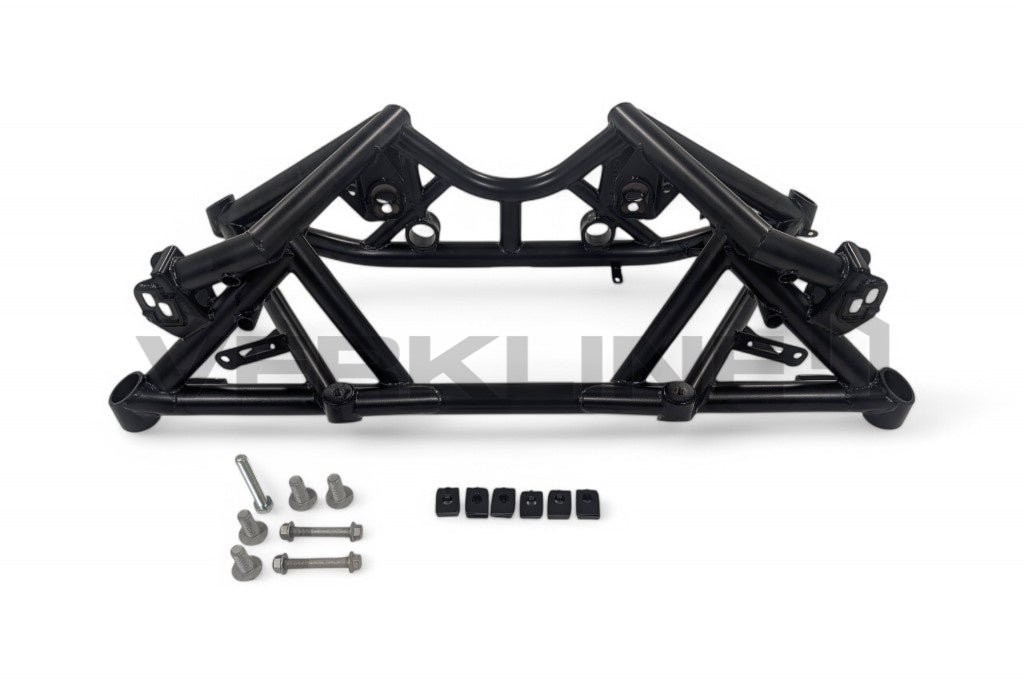

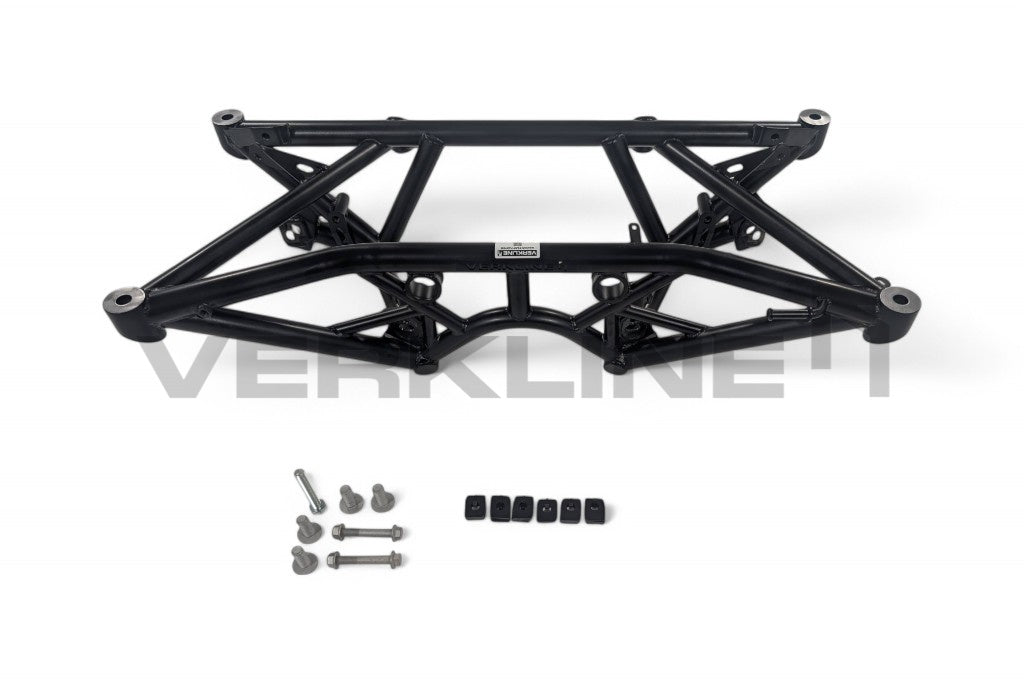

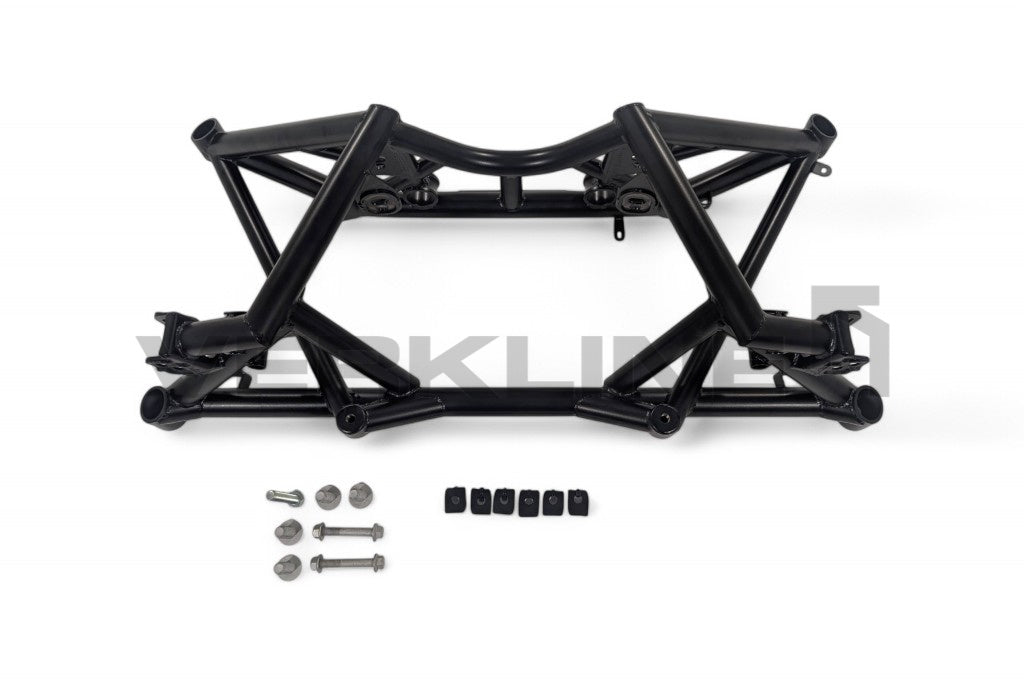

Rear lightweight tubular subframe - Toyota GR Yaris

Here is our rear lightweight tubular subframe for Toyota GR Yaris.

Product functionalities:

• Additional (revised) suspension mounting points for improved suspension kinematics for lowered cars with racing or track purpose


• Bump steer adjustability


• One mounting subframe position eliminates subframe shifting under the car. No need for subframe locking kit / deadset collar kit (weight savings)


• Increases chassis rigidity for improved handling performance. No need for additional lower bar/member brace (weight savings)


• Better access to car underbody

Features:

• Lighter than OEM by 6 kg.


• Compatible with both OEM and Verkline wishbones


• Made from T45 super strong piping.


• Delivered painted (powder coated) black or on special order ( 70 euro) any RAL color

What is included:

• One rear subframe powder coated black with lower brace


• Set of adjustment shims for kinematics adjustment


• One black polyurethane mount for the rear differential


• Set of mounting bolts


• Adjustment Wrench


• Printed install instructions (9 pages).

Used in:
- Toyota GR Yaris  (Gen 1 & Gen 2)
- Toyota GR Corolla GZEA14

Notice: If you want to use modified mounting points that are available on our subframe, you need to use also Verkline wishbones - WAS-621 and WAS-622. OEM wishbones won’t work there. For standard OEM pickup points on our subframe it is possible to use OEM wishbones.

Notice 2: Not all aftermarket exhaust systems will fit with our subframe. There might be some rework on aftermarket exhaust necessary in some cases.

Notice 3: Installation of this rear insert kit will introduce some additional some NVH (noise, vibration, and harshness) transfer into the cabin.

Notice 4: In GR Corolla it might be necessary to make custom mounts to support exhaust pipe.
